Pcounter PRO terminals (copy terminals)

Product Application

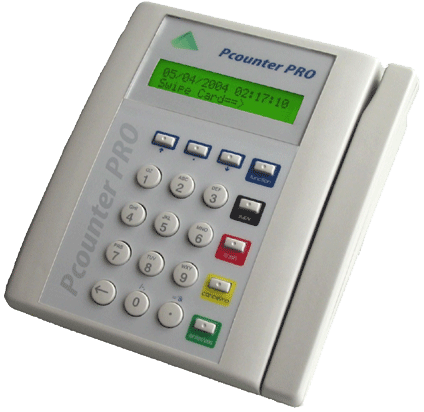

The terminals comes in a broad variety of options, e.g. both with SMS (picture) and Qwerty (full keyboard) keyboard, and in versions without reader or with card-readers for magnetic card (ISO/ABA 4000), MiFare, HID, contact cards (ISO 7816) or disposable cards (PVC version with pre-defined value).



The terminals comes with 4 price line copy release set-up and is capable of being fitted to a wide range of host equipment including photocopiers and copy duplicators, providing the ultimate in flexibility and control for those organisations wishing to sell and control copies.



The terminals will also support Print-on-Release functionality, which can be set-up in combination with copy accounting.



The terminals are a natural add-on to current or new Pcounter installations, proving both the adminstrator and users with a central system for both print and copy.



Pcounter PRO software is needed for support of terminals, and existing server licenses can be upgraded to Pcounter PRO



Functional Overview

Terminals has four price lines that facilitate charging for four different paper sizes. The terminal accesses the Pcounter online account to provide a payment source for any copies taken. The user inputs their identification, username and password, via the SMS style keypad and the account balance is transmitted via a TCP/IP network to the terminal. On receipt of the account balance the copy device is enabled and the user can proceed to make any necessary copies. On completion of all copies the Pcounter account is updated to reflect the cost of any copies.



In order to facilitate access to the Pcounter software an Infineer TCP/IP service is installed on a server that facilitates all communications between the copy release terminal and the Pcounter software.

Features

  •  4 Pricelines
  •  SMS entry for alpha characters (or full Qwerty keyboard)
  • 10 BaseT network interface
  • Security mode to hide user passwords
  • Short ID for use in set-up without cards

Specification



  • Display               Backlit Graphical Display, 4 lines of 20 characters
  • Outputs              2 Relays (NO & NC Contacts)
  • Inputs                4 Opto-Isolated Inputs
  • Power Supply      Switchmode, Universal Input, 5V Output
